Are you looking for a surface treatment that offers corrosion protection without affecting part precision? Alodine finish might be your solution. This chromate conversion coating enhances metal surfaces, providing a protective layer while maintaining dimensional accuracy. In this guide, we’ll discuss the importance of Alodine in industries like aerospace, automotive, and electronics, and explore its key benefits for precision-machined parts.
Alodine finish is a type of chromate conversion coating applied to metals, mainly aluminum, to enhance their corrosion resistance and paint adhesion. This process creates a thin, protective layer on the surface, offering protection without altering the part’s precise dimensions. It’s widely used across industries like aerospace, automotive, and electronics.
The Alodine process involves a chemical reaction between the metal surface and a chromate solution, often containing hexavalent or trivalent chromium compounds. These compounds bond with the metal, creating a stable metal-chrome oxide layer. This thin, durable film helps prevent corrosion while maintaining the electrical properties of the underlying metal.
Alodine coatings come in two main types: Type 1 (hexavalent chromium) and Type 2 (trivalent chromium).
● Type 1 coatings contain hexavalent chromium, which provides superior corrosion resistance but comes with environmental and health concerns.
● Type 2 coatings, on the other hand, use trivalent chromium, a safer alternative that meets modern environmental regulations while still offering solid protection.
● Safety: Type 1 contains hexavalent chromium, which is toxic and regulated due to its carcinogenic properties. Type 2 is much safer, with trivalent chromium offering fewer health and environmental risks.
● Effectiveness: Type 1 coatings are thicker and provide stronger corrosion resistance. Type 2, though slightly less durable, still offers great protection while maintaining safety.
● Environmental Impact: Type 1 coatings have a greater environmental impact due to the presence of hexavalent chromium, whereas Type 2 is considered more eco-friendly due to its chromium-free formulation.
Alodine finish is a chemical process that forms a protective layer on metals, particularly aluminum. This layer helps prevent corrosion and enhances paint adhesion while maintaining the part’s precise dimensions. Here’s a breakdown of how the process works:
1. Surface Preparation:
a. Cleaning: The metal surface is thoroughly cleaned to remove oils, dirt, and other contaminants. This step is crucial for achieving a uniform coating.
b. Etching: The metal is treated with a mild acid to remove the natural oxide layer. This creates a smooth surface for the coating to adhere to.
c. Deoxidizing: Any remaining oxides are removed to ensure a clean, oxide-free surface for optimal bonding.
2. Application Methods:

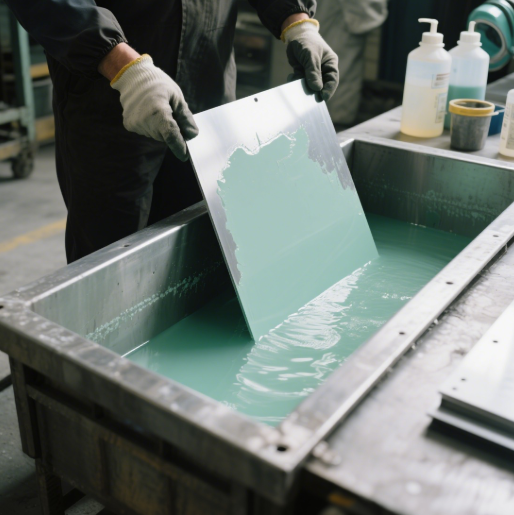

a. Immersion: The metal part is submerged in the Alodine solution. This ensures an even coating thickness and uniform coverage.
b. Brushing: For smaller parts or touch-ups, the Alodine solution can be applied using a brush. It’s more labor-intensive but effective for localized areas.
c. Spraying: The solution is sprayed onto the metal, offering flexibility for both large and small parts. This method is quicker but can be less uniform compared to immersion.
3. Drying and Final Rinse: After the Alodine solution is applied, the part is rinsed with water to remove excess solution and then dried using air or heat. This step stabilizes the protective coating.
The Alodine coating is incredibly thin, typically ranging from 0.5 to 4 microns. This minimal thickness is one of the key advantages of Alodine—it protects the metal without affecting its dimensions. This is particularly important in industries where precise tolerances are critical, such as aerospace and electronics.
During the Alodine process, chromium salts in the solution react chemically with the metal’s surface. This creates a stable metal-chrome oxide layer that bonds to the metal. The resulting thin layer is resistant to corrosion and enhances the adhesion of paints or primers applied afterward. This layer also preserves the electrical conductivity of the metal, making Alodine an ideal choice for electronic and electrical components.
Alodine coatings offer several advantages, making them a preferred choice for protecting metal surfaces, especially in precision industries. Here are the key benefits:
Alodine enhances corrosion resistance by forming a protective chromate layer on metal surfaces. This layer acts as a barrier against moisture, salts, and other corrosive agents. As a result, metal parts treated with Alodine are more resilient in harsh environments, ensuring longer service life and reduced maintenance costs.
One of the standout features of Alodine is its ability to improve paint and primer adhesion. The slightly roughened surface left by the Alodine finish creates an ideal bonding surface, ensuring that paints and coatings stay securely in place. This is especially valuable in industries like automotive and aerospace, where durability is essential.
Alodine’s thin coating does not interfere with the metal’s electrical conductivity. In fact, it can even improve conductivity. This makes it ideal for components used in electronics and electrical systems, where maintaining stable electrical performance is crucial.
Alodine’s application process is both fast and energy-efficient. The coating process typically takes only a few minutes, significantly reducing production time. Additionally, Alodine can be applied at room temperature, lowering energy consumption compared to other methods that require high heat. This efficiency makes it a practical choice for high-volume manufacturing.
Alodine coatings are incredibly thin, typically ranging from 0.5 to 4 microns. This thinness ensures that the coating does not alter the dimensions of the treated parts. This is especially important in precision machining, where maintaining exact tolerances is crucial for part functionality and fit.
Industry | Application |
Aerospace Industry | Used on aircraft parts like landing gear, fuselage, and wing components for corrosion resistance. |
Military and Defense | Protective coating for military-grade components, including weapons and equipment, ensuring durability. |
Electronics and Electrical Components | Ensures conductivity and corrosion resistance in electronics like connectors, housings, and circuit boards. |
Automotive and Marine Industries | Protects automotive parts and marine components from environmental stress such as road salts and saltwater. |
Maintains part tolerances while protecting precision-machined components from corrosion. |
Alodine and anodizing are both popular surface treatments for metals, especially aluminum, but they serve different purposes and have distinct characteristics. Here’s how they compare:
● Alodine: Alodine coatings are thin, typically ranging from 0.5 to 4 microns. This thin film helps protect against corrosion without altering part dimensions.
● Anodizing: In contrast, anodizing creates a much thicker oxide layer, ranging from 5 to 25 microns. This thicker layer enhances wear resistance and durability.
● Alodine: Alodine provides excellent corrosion resistance, particularly in environments with moisture, salt, and chemicals. It creates a protective chromate layer that helps shield the metal.
● Anodizing: While anodizing also offers good corrosion resistance, its thicker oxide layer gives it better wear resistance. This makes anodizing ideal for parts exposed to mechanical stress.
● Alodine: One of Alodine’s key benefits is its ability to maintain electrical conductivity. The thin, non-porous coating allows for electrical signals to pass through without interference.
● Anodizing: Anodized coatings, however, reduce electrical conductivity. The oxide layer formed during anodizing is an insulator, which can be a drawback for electrical components.
● Anodizing: Anodized coatings are more durable due to their thicker and harder nature. This makes them better suited for parts that face frequent wear or harsh conditions.
● Alodine: While Alodine is easier to apply and faster to process, it is not as durable as anodizing. Alodine coatings are better for environments where corrosion resistance is more important than wear resistance.
● Alodine: Alodine coatings typically have limited color options, such as clear, gold, or brown. This is often enough for protective and functional applications.
● Anodizing: Anodizing offers a wider range of color choices due to its ability to absorb dyes into the oxide layer. This makes anodizing a better option for decorative purposes.
Alodine finish plays a crucial role in protecting metal surfaces while preserving precision and electrical conductivity. Its benefits make it a top choice for industries like aerospace, automotive, and electronics. If you’re looking for reliable corrosion resistance and improved paint adhesion, consider consulting an experienced Alodine applicator for your specific project needs.
The Alodine finish process involves cleaning, etching, deoxidizing, and immersing the metal in a chromate solution. This creates a thin, protective layer that enhances corrosion resistance and improves paint adhesion.
Alodine coatings can last for years, particularly when used on parts that are painted. The exact lifespan depends on the environment and part usage.
Yes, Alodine can also be applied to metals like magnesium, cadmium, and zinc-plated steel.
Alodine provides a thin, corrosion-resistant layer, maintaining electrical conductivity, while anodizing creates a thicker, more durable oxide layer but reduces conductivity.
Alodine coatings contain chemicals like hexavalent chromium (in Type 1), which can be toxic. Proper safety protocols are necessary when handling.
Alodine is used in aerospace, military, electronics, automotive, and marine industries for its corrosion resistance and improved paint adhesion.
