Holes are essential features in engineering, serving various purposes from fastening to fluid passage. Choosing the right type is crucial for ensuring functionality, precision, and safety in any project. In this article, we’ll explore different hole types commonly used in engineering and discuss their applications in various industries.
In engineering, a hole refers to a circular opening or cavity created in a material. It can serve various functions, such as allowing fluid to pass through, providing space for fasteners, or creating clearance for other components. Holes are vital in designing mechanical systems, structures, and assemblies, making them fundamental in manufacturing processes.
Holes in engineering drawings are represented using specific symbols to convey details about their size, depth, and other characteristics. Here are the key elements you’ll see:
● Diameter (Ø): A symbol (Ø) followed by the measurement in millimeters or inches to indicate the size of the hole.
● Depth: The depth of a hole is shown using the depth symbol (↓). This tells how far the hole goes into the material.
● Types of Holes: Simple holes, through holes, blind holes, and threaded holes are commonly used symbols, depending on the design needs.
Several methods are used to create holes in engineering, depending on the material and hole requirements:
● CNC Drilling: This is a common method where a rotating drill bit removes material to create holes. CNC machines allow precise control over the size and depth.
● Tapping: Tapping creates internal threads in a hole, allowing screws or bolts to fasten. This is done using a tap tool that cuts threads into the hole.
● EDM Drilling: Electrical Discharge Machining (EDM) is used for precise drilling in hard materials. It uses electrical sparks to create holes in materials that are tough to drill using traditional methods.
These techniques ensure holes are made accurately for the intended application, whether for assembling components or ensuring proper fluid flow.
● Purpose: Simple holes are often used for clearance, alignment, and assembly.
● Shape & Symbol: These holes are circular with a uniform diameter and are denoted by the symbol "Ø" in technical drawings.
● Applications: Simple holes are crucial in fastening components and ensuring accurate alignment between parts.
● Purpose: Through holes extend completely through a material and are designed to allow fluid flow, wiring, or fastening between two parts.
● Shape & Symbol: Circular in shape, they go through the entire thickness of the material. They are represented by "Ø THRU" in drawings.
● Applications: Common in applications like wiring, bolted connections, and fluid transfer systems.
● Purpose: Blind holes don’t pass all the way through the material, typically used for mounting or fastening components.
● Shape & Symbol: Circular with only one open side, denoted by a depth symbol "↓" indicating the hole's depth.
● Applications: Often used for mounting points, screw insertions, and reducing weight in parts.
● Purpose: Threaded holes are designed to receive screws or bolts, providing a strong and reusable fastening solution.
● Shape & Symbol: These holes have internal threads and are represented by the "M" symbol (e.g., M6) or "Ø" with thread details in the drawings.
● Applications: Used in machinery, structural elements, and any application requiring reusable connections.
● Purpose: Counterbore holes create space to house the head of a screw or bolt, providing a smooth, flush surface.
● Shape & Symbol: These holes have an enlarged cylindrical recess around a smaller hole. They are marked with the "⌴" symbol in technical drawings.
● Applications: Common in applications where screws or bolts need to be housed beneath the material surface, offering a clean and aesthetic finish.
● Purpose: Countersink holes are used to create a conical recess at the top of a hole, allowing a screw or bolt to sit flush with the surface.
● Shape & Symbol: Cone-shaped hole, denoted by "⌵" in drawings. The angle of the cone varies based on the fastener type.
● Applications: Frequently used in aerospace, automotive, and consumer products where flush fasteners are essential for smooth surfaces.
Some engineering projects require more specialized hole types for complex functions. These hole types are less common but critical for specific tasks such as press-fit assemblies, fluid control, and high-precision applications. Let’s explore these specialized hole types and their uses.
● Purpose: Tapered holes are designed to allow press-fit assemblies or for fluid control applications.
● Shape & Symbol: These holes are conical in shape, gradually narrowing along their depth. The taper angle is critical for the fit and sealing properties.
● Applications: Common in tool holders, seals, and press-fit components. They provide secure fits for parts that need to be tightly joined without additional fasteners.
● Purpose: Interrupted holes are interrupted by other features or shapes, often for complex component assemblies.
● Shape & Symbol: These holes feature a discontinuous geometry, where the hole is broken by another feature or shape, then continues.
● Applications: Frequently used in bearing seats, where interruptions help align and support moving parts. They're also found in complex mechanical assemblies that need precise alignment of various components.
● Purpose: Spotface holes are used to create a flat surface around a hole, providing a stable seating area for fasteners.
● Shape & Symbol: These holes feature a shallow counterbore with a flat surface that makes them ideal for ensuring proper contact between fasteners and the material.
● Applications: Ideal for pressure distribution and fastening in cast materials, where a smooth and uniform surface is crucial for the secure attachment of components.
● Purpose: Reamed holes are designed to achieve high precision and a refined surface finish.
● Shape & Symbol: These are enlarged and refined circular holes, created by a reamer to improve the hole's accuracy and finish.
● Applications: Used in high-precision assemblies such as bearings, where tight tolerances and smooth surfaces are essential for function and longevity.
These specialized hole types are essential in various industries, including automotive, aerospace, and manufacturing, where precision, fitting, and material compatibility are key.
Creating precise holes in engineering is crucial for ensuring a product functions as intended. Several machining techniques are used to create holes of different types, each suited to specific materials and application needs. Let’s look at some of the most common methods used in hole creation.
CNC milling is a versatile method that allows for highly precise hole creation. This process involves a multi-axis machine that can cut, shape, and drill holes in various shapes and sizes. The flexibility of CNC milling ensures that even complex hole geometries can be achieved with high accuracy.
● Advantages: High precision, ability to create complex hole shapes.
● Applications: Aerospace parts, automotive components, and precision machinery.

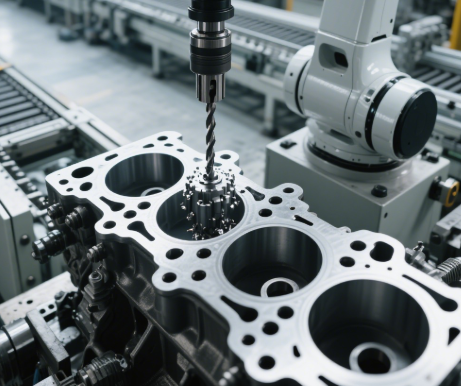

CNC drilling is widely used for creating both simple and complex holes. This method involves a rotating drill bit that removes material to form a hole. CNC drills are highly efficient, capable of creating holes with tight tolerances and consistent quality.
● Advantages: Fast, efficient, and accurate drilling.
● Applications: Common in manufacturing industries for mass production of parts requiring holes.
Electrical Discharge Machining (EDM) drilling is ideal for creating small, precise holes in hard materials. It works by using an electric spark to erode material, allowing it to cut through materials that are too tough for conventional drilling methods.
● Advantages: Capable of drilling extremely small and precise holes.
● Applications: Used for micro-holes in hard metals and materials like titanium and tool steel.
Tapping is a method used to create internal threads in a hole. A tap tool cuts the threads into the hole, allowing for secure fastening of bolts or screws. This process is essential for applications requiring reusable connections.
● Advantages: Efficient threading for secure fastening.
● Applications: Common in machinery, automotive, and construction, where threaded connections are essential.
These techniques are fundamental in producing high-quality parts that meet precise specifications, ensuring their reliability and performance in engineering applications.
In this article, we've explored various hole types used in engineering, including simple, through, blind, and threaded holes. Each hole type serves a specific function, from fastening to fluid passage. Choosing the correct hole type is crucial for both functionality and manufacturability. For optimal results, consider consulting experts at Hong Chuang Precision Machinery or utilizing advanced tools to ensure precision in hole selection.
A through hole extends completely through the material, while a blind hole does not pass all the way through and is open only on one side.
The clearance hole size is typically calculated using the formula: Clearance hole diameter = (Screw Diameter + Screw Head Diameter) / 2.
Threaded holes, tapped holes, and counterbore holes are ideal for fastening components, as they allow for secure, reusable connections.
Yes, tapered holes are often used in high-pressure applications to create press-fit joints and high-performance seals.
Spotface holes provide a flat, smooth surface around a hole, ensuring proper seating for fasteners and distributing pressure evenly.
