Have you ever wondered how ordinary objects transform into shiny, durable items? Electroplating is the secret behind this fascinating process. It's an age-old technique used to coat objects with a thin metal layer, enhancing both appearance and strength. In this post, you'll learn what electroplating is, its historical roots, and its vital role in various industries today.
Electroplating relies on the chemical process called hydrolysis, where water molecules split during the reaction. When an electric current passes through the electrolytic solution, metal ions from the anode dissolve and move toward the cathode. At the cathode, these metal ions gain electrons and deposit as a thin metal layer on the surface. Meanwhile, water molecules in the solution break down into hydrogen and hydroxide ions, affecting the chemical balance of the bath. This hydrolysis is essential because it helps maintain the electrical neutrality in the solution and supports the continuous flow of ions. Without it, the plating process would stop as charges would build up and block ion movement.
In the electroplating setup, two electrodes play crucial roles: the anode and the cathode. The anode is the positive electrode, usually made of the metal that will be plated onto the object. When the electric current flows, metal atoms at the anode lose electrons, turning into positive metal ions. These ions enter the electrolyte solution and travel toward the cathode. The cathode is the negatively charged electrode, which is the item to be plated. As the metal ions reach the cathode, they gain electrons and become solid metal atoms, forming a smooth, even coating on the surface. This movement of ions and electrons between the electrodes is what causes the metal to transfer from the anode to the cathode.
The electrolytic solution, or plating bath, is a key part of the electroplating process. It contains dissolved metal salts, which provide the metal ions needed for plating. For example, copper sulfate is common in copper plating baths. The solution also includes acids or bases to control the pH, and sometimes additives to improve the quality of the metal deposit. These additives can affect the brightness, hardness, or smoothness of the plating. The solution must conduct electricity well, allowing ions to move freely between the anode and cathode. Maintaining the right chemical balance, temperature, and concentration in the bath is vital. If the solution is too weak or contaminated, the plating will be uneven or weak.
Together, hydrolysis, the electrodes, and the electrolytic solution create the environment for metal ions to move and deposit onto surfaces. This principle allows electroplating to coat objects with thin, durable layers of metal, improving their appearance and resistance to wear and corrosion.
Electroplating involves several clear steps that transform a plain object into one coated with a thin metal layer. First, the object to be plated acts as the cathode, or negative electrode, and is cleaned thoroughly to remove dirt, grease, or rust. Next, the anode, usually made from the metal you want to plate onto the object, is prepared as the positive electrode. Both electrodes are immersed in an electrolytic solution containing metal ions.
When a direct current (DC) is applied, metal atoms at the anode lose electrons and dissolve into the solution as positive ions. These ions travel through the electrolyte toward the cathode. Upon reaching the cathode, the metal ions gain electrons and deposit as a thin, uniform metal layer on the object's surface. The process continues as long as the current flows and metal ions are available, gradually building up the plated layer's thickness.
The plating time controls the thickness of the metal layer; longer plating times yield thicker coatings. However, care must be taken to avoid over-plating, which can cause roughness or brittleness. After plating, the object is rinsed and polished to enhance its appearance and durability.
Several factors influence how well electroplating works. First, the voltage and current density must be carefully controlled. Too high a voltage can cause uneven plating or burning, while too low results in slow or incomplete coverage. Temperature also plays a role; warmer baths generally increase plating speed but may compromise coating quality if too hot.
The chemical composition of the electrolytic bath is critical. The concentration of metal ions, pH level, and presence of additives affect the deposit's smoothness, brightness, and hardness. For example, brighteners and leveling agents help produce shiny, even coatings.
Distance between the anode and cathode matters as well. If too far apart, ion movement slows, reducing plating efficiency. Proper agitation of the solution ensures uniform ion distribution, preventing uneven plating.
Finally, the surface condition of the cathode influences adhesion. Any contamination or roughness can cause poor bonding or patchy plating.

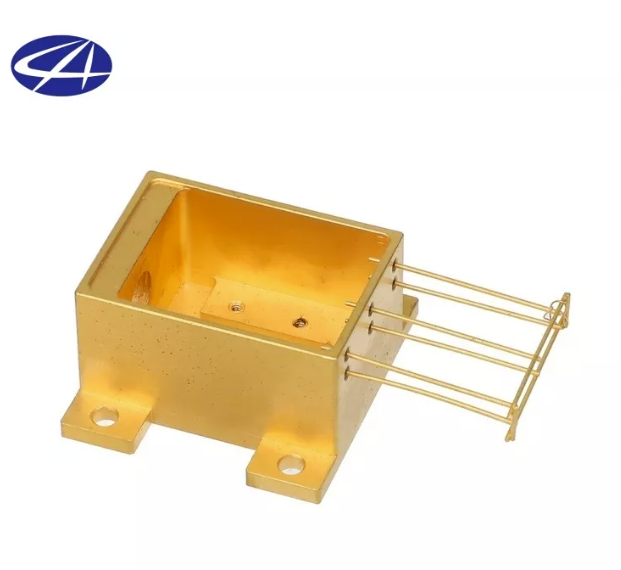

Gold electroplating beautifully illustrates these principles. Suppose you want to coat a piece of jewelry with gold. The gold anode dissolves into the electrolyte bath when current is applied. Gold ions travel to the jewelry, which acts as the cathode, and deposit onto its surface.
Controlling the current ensures the gold layer is smooth and even. The bath’s temperature and chemical makeup are carefully maintained to produce a bright, durable finish. The jewelry is often polished afterward to enhance its shine.
Gold plating not only improves appearance but also provides corrosion resistance and electrical conductivity, making it popular in electronics and decorative arts.
This process highlights how electroplating transforms objects by depositing metals in controlled, precise layers, enhancing both function and beauty.
Electroplating often uses a variety of metals, each chosen for its specific properties and the function it adds to the plated object. Copper is one of the most common metals. It offers excellent electrical conductivity and heat resistance, making it ideal for electronics and decorative finishes. Zinc is another popular choice due to its strong corrosion resistance. It often serves as a protective coating, especially in automotive parts, to prevent rust. Nickel is widely used for its hardness and wear resistance. It also provides a shiny, attractive surface, which is why you often see nickel plating on jewelry and household fixtures.
Gold and silver are precious metals commonly used for plating fine jewelry and electronic components. Gold stands out for its corrosion resistance and excellent conductivity. Silver, while less resistant to tarnish than gold, offers superior electrical conductivity and a bright, attractive finish. Other metals like chromium, palladium, and tin are also used depending on the application. For example, chromium plating adds a hard, reflective surface often seen on car bumpers and faucets.
Sometimes, electroplating uses alloys, which are combinations of two or more metals. Alloys can bring together the best qualities of different metals. For instance, a nickel-cobalt alloy might combine nickel’s hardness with cobalt’s magnetic properties. Zinc-nickel alloys are especially popular in industries needing corrosion resistance and durability, like aerospace and automotive sectors. These alloys often outperform single metals by offering enhanced resistance to wear, corrosion, and heat.
Using alloys can also improve the plating process itself. Some alloys deposit more evenly or adhere better to certain substrates. This leads to coatings that last longer and perform better under stress. For example, palladium-nickel alloys are used in electronics for their excellent conductivity and resistance to oxidation.
Electroplating usually requires the substrate to be conductive because the metal ions need a surface to deposit onto. However, many materials like plastics, glass, or ceramics do not conduct electricity. To electroplate these, a pre-coating step is necessary. This involves applying a thin conductive layer to the non-conductive surface. Common methods include spraying or dipping the object in a conductive paint, often containing fine metal particles.
Once the substrate becomes conductive, it can be electroplated just like metal. This technique is especially useful for producing lightweight parts with metal finishes, such as plastic components in electronics or automotive interiors. Pre-coatings must be uniform and well-adhered to ensure the final metal layer is smooth and durable.
In some advanced processes, electroless plating is used to deposit an initial metal layer without electricity. This layer acts as a base for further electroplating. It’s a critical step in manufacturing complex parts where direct electroplating isn’t possible initially.
Electroplating plays a vital role in many industries due to its ability to enhance durability, corrosion resistance, and electrical conductivity of parts. In the automotive sector, electroplating is widely used to protect metal parts from rust and wear. For example, zinc and zinc-nickel coatings serve as sacrificial layers on steel components, preventing corrosion in harsh environments. Chrome plating adds a shiny, hard finish to bumpers and trims, improving both appearance and resistance to scratches.
In aerospace, electroplating helps extend the life of aircraft parts exposed to extreme temperatures and weather. Nickel and copper plating improve wear resistance and heat dissipation on engine components and fasteners. Similarly, the electronics industry relies heavily on gold, silver, and copper plating to ensure reliable electrical connections in circuits, connectors, and semiconductors. These coatings enhance conductivity and prevent oxidation, which could disrupt signal flow.
Electroplating also benefits manufacturing by enabling the production of lightweight components. By plating a thin metal layer onto plastic or other light substrates, manufacturers reduce overall weight without sacrificing strength or appearance. This is especially useful in consumer electronics, automotive interiors, and aerospace parts.
Electroplating has long been cherished in art and jewelry for its ability to transform ordinary objects into beautiful, lasting pieces. Jewelers often plate items like rings, necklaces, and bracelets with precious metals such as gold, silver, or rhodium. This not only enhances the visual appeal but also protects the base metal from tarnishing and corrosion. For example, gold plating over silver creates a warm, luxurious finish while maintaining affordability.
Artists use electroplating to preserve delicate natural objects, like leaves and insects, by coating them with metal. This process strengthens fragile materials and immortalizes their intricate details. Sculptors and designers also employ electroplating to add metallic finishes to 3D printed or handcrafted pieces. This technique allows for creative freedom while achieving the look and feel of solid metal.
Electroplated jewelry often combines multiple metals for unique effects. Rose gold, for instance, is created by plating a mix of gold and copper, giving a pinkish hue. Layering metals can also improve durability and add contrast, making pieces more visually interesting.
In medicine and dentistry, electroplating enhances the performance and longevity of instruments and implants. Dental restorations like crowns, bridges, and inlays are frequently coated with gold or other biocompatible metals. Gold plating offers excellent corrosion resistance and a smooth surface, reducing irritation in the mouth and improving comfort.
Orthopedic implants, such as screws and joint replacements, benefit from electroplated coatings that prevent corrosion and wear inside the body. Titanium and cobalt-chromium alloys are often plated to improve biocompatibility and mechanical strength. This helps implants last longer and reduces the risk of adverse reactions.
Surgical tools also receive electroplated finishes to enhance hardness and sterilization capability. Nickel and chromium coatings provide a smooth, wear-resistant surface that withstands repeated cleaning and use. Additionally, certain electroplated metals improve electrical conductivity for medical devices that rely on precise signals.
In all, electroplating in medical and dental fields ensures safety, durability, and functionality, supporting better patient outcomes and advancing healthcare technology.
Electroplating improves object durability by applying a thin metal layer, which strengthens the surface without adding much weight. This protective layer shields materials from scratches, wear, and corrosion. For instance, nickel plating hardens machine parts, while zinc plating provides a sacrificial layer to prevent rust.
Electroplating gives items a shiny, attractive finish, transforming ordinary materials into visually appealing products. Jewelry, faucets, and watches often feature electroplated layers like gold or chrome, enhancing their appearance and longevity.
Electroplating enhances conductivity, crucial for electronic components. Metals like gold and silver improve electrical flow, while copper plating aids heat dissipation in circuits. This boosts device performance and extends component life.
Electroplating requires careful control over variables like current, voltage, and bath composition. Small errors can result in uneven coatings or defects. Objects with complex shapes may need specific adjustments, adding complexity to the process.
Electroplating uses chemicals that can harm the environment and health, including toxic metals like chromium and cadmium. Regulations limit pollution, but facilities still face challenges with waste management and worker safety.
Maintaining consistent electroplating quality is challenging, as minor changes in bath conditions or materials can affect results. Frequent testing and skilled personnel are necessary to ensure uniformity and prevent defects.
Electroplating is a crucial process in various industries, enhancing the durability, appearance, and functionality of objects by applying a thin metal coating. Its principles—hydrolysis, the role of electrodes, and the electrolytic solution—ensure that metal ions move effectively to create smooth, durable layers. While electroplating offers significant benefits like improved strength, corrosion resistance, and conductivity, it also poses challenges, including process complexity, environmental concerns, and the need for consistent quality control. Despite these challenges, electroplating continues to play a vital role in sectors such as manufacturing, jewelry, electronics, and healthcare, contributing to the longevity and performance of countless products.
A: Hydrolysis maintains electrical neutrality by splitting water molecules into ions, supporting continuous ion flow during plating.
A: The anode dissolves metal ions into the solution, and the cathode receives these ions, forming the metal coating.
A: Copper, zinc, nickel, gold, silver, chromium, and alloys like nickel-cobalt are frequently used.
A: Metals like gold and silver enhance conductivity and prevent oxidation on electrical contacts.
A: Process complexity, environmental hazards, and maintaining consistent quality are key challenges.
