Have you ever wondered how metals get their shiny, protective coatings? Electroplating is the key process behind this transformation. It enhances metal surfaces for durability and beauty. Electroplating uses electricity to deposit a metal layer onto objects. This process is vital in industries and daily life for corrosion resistance and decoration. In this post, you’ll learn what electroplating is, why it matters, and the main ways it is classified by coating metals. We’ll also explore how electrolysis drives this fascinating process.
Chromium is a silver-white metal with a faint bluish tint. Despite its highly negative electrode potential, it quickly forms a protective oxide layer when exposed to air. This passivation makes it behave like a precious metal, preventing further corrosion. Because of this, chromium plating on iron parts acts as a cathodic coating, protecting the underlying metal.
Once chromium forms that thin oxide layer, it becomes very stable in the atmosphere. This stability allows the chrome layer to keep its shiny appearance for a long time. It also resists many corrosive substances, such as alkalis, nitric acid, sulfides, carbonates, and organic acids. However, it can dissolve in hydrochloric acid, other hydrogen halide acids, and hot concentrated sulfuric acid.
The corrosion resistance of chromium plating is a major reason for its widespread use. It shields steel and iron parts effectively, even in harsh environments. The plating's chemical stability means it can withstand exposure to many chemicals without degrading quickly. This makes it ideal for parts exposed to industrial or outdoor conditions.
Chrome plating is known for its hardness and wear resistance. The layer is tough enough to protect surfaces from scratching and abrasion. It also reflects light strongly, giving a bright, mirror-like finish. Regarding heat resistance, the chromium layer remains stable and retains its gloss and hardness up to about 500°C. Above that, oxidation causes discoloration, and past 700°C, the plating starts to soften.
Thanks to these excellent properties, chrome plating is widely used as both a protective and decorative finish. It often serves as the outermost layer in coating systems, providing a shiny, corrosion-resistant surface. You'll find chrome plating on automotive parts, tools, household fixtures, and machinery components. Its combination of durability and aesthetics makes it a popular choice for many industries.
Copper plating results in a pinkish layer that is soft and highly ductile. It is prized for its excellent electrical and thermal conductivity, making it an ideal choice for applications requiring efficient energy transfer. The copper surface is easy to polish, which helps achieve a smooth and attractive finish. However, copper is chemically reactive; it tends to lose its shine when exposed to air due to reactions with carbon dioxide or chloride ions. These reactions form a basic copper carbonate or copper chloride film on the surface, which dulls the plating's appearance. Moreover, exposure to sulfides leads to the formation of brown or black copper sulfide, further affecting the surface aesthetics.
One of copper plating’s biggest advantages is its ductility—it can bend without breaking, which is crucial for parts that undergo mechanical stress. Its electrical conductivity is among the highest for metals, allowing copper-plated components to efficiently conduct electricity. This makes it a preferred coating in electrical connectors, circuit boards, and other electronic parts. Thermal conductivity is also excellent, so copper plating helps dissipate heat effectively in heat exchangers or cooling systems.
Copper plating can be chemically treated to produce various decorative colors. These include bronze tones, verdigris (greenish patina), black, and natural copper hues. Such treatments expand copper plating’s use beyond functional roles into decorative applications. For example, antique-style finishes or artistic effects are achievable through controlled chemical processes. These color variations enhance the versatility of copper plating in jewelry, architectural accents, and ornamental hardware.
Despite its many benefits, copper plating faces the challenge of tarnishing. The natural reaction with environmental gases and pollutants causes the surface to lose its luster quickly. To combat this, copper-plated items often receive an organic protective coating. This clear layer acts as a barrier, preventing direct contact with air and moisture, thus preserving the bright finish. Without such protection, copper plating requires regular maintenance to keep its appearance.
Copper plating finds wide use in industries where conductivity, corrosion resistance, and aesthetics are important. Electrical and electronic components, such as printed circuit boards and connectors, commonly use copper plating to ensure efficient signal transmission. It also serves as an undercoat for other plating metals, providing a smooth surface and improving adhesion. Additionally, decorative copper plating appears in jewelry, musical instruments, and architectural elements. In plumbing, copper plating enhances corrosion resistance and improves thermal transfer in heat exchangers.
This combination of properties and uses makes copper plating an essential process in both industrial and decorative contexts.
Cadmium is a shiny, silver-white metal that’s softer than zinc but harder than tin. It’s quite malleable, making it easy to forge and roll into thin layers. Chemically, cadmium behaves similarly to zinc but does not dissolve in alkaline solutions. It dissolves in nitric acid and ammonium nitrate and reacts slowly with dilute sulfuric and hydrochloric acids. These properties make cadmium plating effective for protective coatings, especially where corrosion resistance is needed.
Despite its useful properties, cadmium presents serious health and environmental risks. Both cadmium vapor and soluble cadmium salts are toxic to humans and wildlife. Exposure can cause severe health problems, including kidney damage and respiratory issues. Because of this, strict regulations exist to prevent cadmium pollution during electroplating operations. Handling cadmium requires careful control measures to avoid contamination of air, water, and soil.
In industrial electroplating, several types of cadmium plating solutions are used. The most common include:
Ammonia carboxylate complex cadmium plating baths
Acid sulfate cadmium plating baths
Cyanide cadmium plating baths
Other less common types involve pyrophosphate, alkaline triethanolamine, and HEDP (hydroxyethylidene diphosphonic acid) cadmium plating baths. Each solution type offers different plating characteristics, such as brightness, hardness, and adhesion, tailored for specific applications.
Because cadmium pollution is highly harmful and costly to manage, industries often look for substitutes. Zinc plating or alloy coatings frequently replace cadmium plating. These alternatives provide similar corrosion resistance and protective qualities but with less environmental impact. Research continues into new materials and processes that can match or exceed cadmium’s performance without its toxicity.
Cadmium plating remains popular in specialized fields where its unique properties are essential. It’s widely used in aerospace, military, and electronics industries for parts requiring excellent corrosion resistance, especially in marine or harsh environments. For example, fasteners, connectors, and aircraft components often receive cadmium coatings to prevent rust and wear. However, due to environmental concerns, its use is declining in favor of safer options wherever possible.
Tin shows a bright silver-white appearance and offers remarkable chemical stability. It resists corrosion well, making it a popular choice for protective coatings. When applied as a plating layer, tin forms a barrier that shields the underlying metal from oxidizing agents and moisture. This corrosion resistance is especially important in preventing rust on steel parts. Tin plating maintains its integrity even in mildly acidic or neutral environments, which helps extend the life of coated objects.
Electrochemically, tin has a positive standard electrode potential compared to iron and steel, meaning it acts as a cathodic coating. In simple terms, tin plating protects steel by preventing it from corroding electrochemically, as long as the tin layer is free of pores or cracks. If the tin coating is continuous and intact, it effectively isolates the steel substrate from corrosive elements. This cathodic protection makes tin plating valuable in applications where steel parts face exposure to moisture or chemicals.
Tin plating is prized for its excellent electrical conductivity, which is why it often coats electronic components and circuit boards. Its surface allows easy soldering, creating reliable electrical connections. This property makes tin plating a go-to choice in the electronics industry, where strong, conductive joints are essential. Additionally, tin’s softness and ductility mean the plating layer can accommodate slight mechanical stresses without cracking, preserving conductivity over time.
Tin plating does face some unique challenges. At very low temperatures (below about -30°C), tin can undergo a transformation known as “tin plague.” This process changes tin’s crystal structure, causing it to become brittle and crumble. While rare in everyday conditions, tin plague is a concern in extremely cold environments.
Another phenomenon is the growth of tin whiskers—tiny, hair-like metallic filaments that can sprout from the tin surface under high humidity, temperature, and sealed conditions. These whiskers can cause short circuits in electronic devices. Manufacturers often take steps to minimize whisker growth, such as applying additional coatings or using tin alloys instead of pure tin.
Beyond protection, tin plating serves decorative purposes. After plating, tin layers can be heat-treated by re-dissolving in hot oil above tin’s melting point (about 232°C). This process creates a glossy, patterned surface that enhances visual appeal. Such decorative tin coatings appear on household items, kitchenware, and everyday necessities.
Tin’s softness and good ductility also make it easy to work with during manufacturing. Its non-toxic nature adds to its appeal, especially in food-related or medical applications where safety is critical. The combination of corrosion resistance, conductivity, and aesthetic qualities makes tin plating versatile across many industries.
Zinc is an amphoteric metal, meaning it can dissolve in both acids and bases. In dry air, zinc remains quite stable and shows little change. However, in humid air, it forms a thin layer of basic zinc carbonate on its surface. This layer acts as a protective barrier against further corrosion.
Despite this, zinc coatings face challenges in certain environments. In atmospheres containing sulfur dioxide, hydrogen sulfide, or marine air, zinc corrodes more easily. High-temperature and high-humidity environments, especially those with organic acids, accelerate zinc corrosion. This makes zinc coatings less durable in such harsh conditions.
Zinc has a standard electrode potential of about -0.76 volts. When used as a coating on steel, zinc acts as an anodic layer. This means it corrodes preferentially, protecting the steel beneath it from rusting. This sacrificial protection is the main reason zinc plating is widely used for steel parts.
The effectiveness of this protection heavily depends on the thickness of the zinc coating. Thicker layers provide longer-lasting defense against corrosion. If the zinc layer wears off or is damaged, the steel underneath becomes vulnerable.
Environmental factors greatly affect zinc plating's lifespan. Dry conditions help maintain zinc's protective carbonate film, slowing corrosion. But in moist, polluted, or salty air, corrosion speeds up.
For example, coastal areas with salty sea air cause rapid zinc degradation. Industrial zones with sulfur compounds in the air also challenge zinc coatings. Temperature fluctuations can cause cracking or peeling of the zinc layer, reducing its protective ability.
Because of these factors, zinc plating may require additional treatments to improve durability.
Two main types of zinc plating baths exist: cyanide-based and non-cyanide baths.
Cyanide Baths: These are subdivided into micro cyanide, low cyanide, medium cyanide, and high cyanide categories. Cyanide solutions provide excellent plating ability, producing smooth, fine coatings. They have been widely used in industry for decades.
Non-Cyanide Baths: These include alkaline zincate baths, ammonium salt baths, sulfate baths, and ammonia-free chloride baths. Non-cyanide baths are gaining popularity due to environmental and safety concerns related to cyanide toxicity.
While cyanide baths deliver high-quality finishes, their toxicity and pollution risks have led many manufacturers to adopt low-cyanide or cyanide-free alternatives.
Galvanizing technology has evolved beyond simple corrosion protection. Modern processes use high-performance brighteners and additives that improve both protective and decorative properties of zinc coatings.
Passivation treatments, dyes, and light-protective coatings enhance zinc's appearance and corrosion resistance. These improvements allow zinc plating to serve decorative purposes on consumer goods and automotive parts.
Applications of zinc plating include:
Automotive body parts
Construction hardware
Electrical enclosures
Household appliances
New galvanizing methods also allow for more uniform coatings on complex shapes. This progress expands zinc plating’s use in industries demanding both durability and aesthetics.
Nickel plating stands out for its excellent stability in air. The metal quickly forms a thin passivation film on its surface, protecting it from corrosion by air, alkalis, and some acids. This passivation makes nickel-plated surfaces highly durable and long-lasting.
The nickel layer's crystal structure is very fine, which allows it to polish to a mirror-like shine. This polished finish remains bright for a long time, making nickel plating popular for decorative uses.
Besides aesthetics, nickel plating adds hardness to surfaces, improving wear resistance. For example, in the printing industry, nickel layers reinforce soft lead surfaces. In chemical equipment, thicker nickel coatings protect parts from corrosion by harsh chemicals.
Nickel plating also serves functional roles. It repairs worn or corroded parts through localized electroplating, often using brush plating techniques. Electroforming with nickel produces precise molds for printing and manufacturing. Composite nickel coatings, embedding particles like graphite or fluorides, offer self-lubrication and enhanced wear resistance. Black nickel coatings find use in optical instruments and decorative finishes.
This versatility means nickel plating applies widely. It protects and decorates steel, zinc die-castings, aluminum alloys, and copper alloys. Often, a nickel layer serves as a middle coat topped by chromium or imitation gold for extra corrosion resistance and beauty. In special industries, thick nickel deposits (1–3 mm) restore parts or create wear-resistant surfaces on molds, aerospace components, and microelectronics.

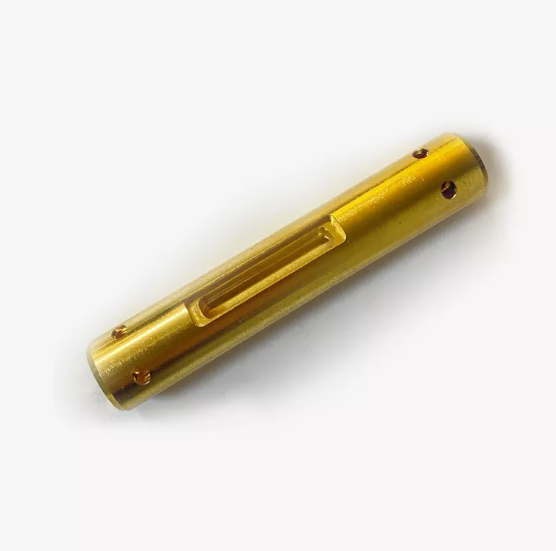

Gold plating offers strong corrosion resistance and excellent electrical conductivity. It resists discoloration and tarnishing better than many metals, making it ideal for long-term decorative and functional coatings.
Gold alloys can vary in color, expanding decorative options. Gold plating also has good ductility and polishes easily, which suits jewelry, watches, and art objects.
In electronics, gold plating appears on precision instruments, printed circuit boards, integrated circuits, and electrical contacts. It ensures stable electrical performance over time and withstands high temperatures. Hard gold alloys mixed with other elements improve wear resistance.
Due to gold’s high cost, its use is often limited to critical or luxury applications where performance or appearance justifies the expense.
Silver plating enhances conductivity, corrosion resistance, and reflectivity. It is widely used in electrical appliances, instruments, meters, and lighting fixtures.
When plating copper or copper alloys with silver, the surface must be carefully cleaned and pretreated. Sometimes, a thin mercury film is applied to improve adhesion before silver plating. The plating bath often contains silver cyanide salts, but cyanide-free silver plating solutions also exist, using thiosulfate, sulfite, or thiocyanate electrolytes.
Silver coatings may discolor over time. To prevent this, post-plating treatments like dip brightening, chemical or electrochemical passivation, or adding precious metal layers help maintain the silver’s shine.
While nickel, gold, and silver plating all serve protective and decorative purposes, they differ in key ways:
Nickel offers hardness, wear resistance, and corrosion protection with a silvery finish. It is cost-effective and widely used for functional coatings.
Gold excels in corrosion resistance, electrical conductivity, and aesthetic appeal, but comes at a higher price.
Silver provides the best electrical and thermal conductivity and high reflectivity but is prone to tarnishing without protective treatments.
Each metal suits different needs depending on the balance of cost, durability, conductivity, and appearance.
Nickel plating appears on automotive parts, machinery, chemical equipment, printing molds, and electronics. Its hardness and corrosion resistance make it a workhorse coating.
Gold plating decorates jewelry, watches, and high-performance electronics. It also protects contacts and connectors in aerospace and telecommunications.
Silver plating is common in electrical contacts, circuit boards, mirrors, and lighting. It enhances conductivity and aesthetics but requires care to avoid tarnish.
Together, these precious and functional metal platings expand electroplating’s reach across industries, combining protection, performance, and beauty.
Composite materials differ from alloys or pure metals because they combine distinct components that retain their own properties. Unlike alloys, where metals blend completely, composites keep their parts separate, creating a stronger overall material. Think of concrete: you can see the small rocks inside the cement. This structure makes composites tough but also presents unique challenges for electroplating, which usually requires a conductive surface.
Composites often come molded into shapes and can be difficult to cut due to their mixed structure. Despite this, many composite materials can be successfully plated, enhancing their surface properties like wear resistance, corrosion protection, or electrical conductivity. The key is understanding the type of composite and preparing it properly for plating.
Metal Matrix Composites combine lightweight metals such as aluminum or magnesium with reinforcing fibers or ceramics. This mix improves strength, heat tolerance, and resistance to wear compared to metals alone. MMCs are popular in aerospace and automotive parts where weight reduction and durability matter.
However, MMCs can suffer from corrosion between the metal and reinforcements, especially in wet environments. Plating helps protect these composites by adding a durable metal layer. Since MMCs contain conductive metal, electroplating works well after surface cleaning. The plating can improve hardness, corrosion resistance, and sometimes electrical conductivity.
MMCs vary based on the type of reinforcement (ceramic fibers like silicon carbide or aluminum oxide), the metal matrix, and the shape of the reinforcements (continuous fibers, chopped fibers, or particulates). Each factor influences plating adhesion and performance.
Ceramic Matrix Composites use ceramic fibers to reinforce a ceramic base. They offer exceptional heat resistance and light weight, making them ideal for aircraft engines and industrial turbines. However, ceramics are non-conductive, posing a plating challenge since electroplating requires conductivity.
To plate CMCs, we first apply electroless plating, which deposits a thin metal layer without electricity. This metal layer acts as a conductive base, allowing subsequent electroplating to build up the desired metal coating. This two-step process ensures good adhesion and uniform coverage on ceramic composites.
CMCs come with either continuous fibers, which help prevent cracks from spreading, or whiskers (short fibers), which slow crack growth but may allow brittle failure. The plating process must accommodate these structures to avoid damaging the composite.
Fiber-Reinforced Plastics combine plastic with fibers like glass, carbon, or aramid to boost strength and stiffness. FRPs have excellent corrosion resistance and are used in construction, automotive, aerospace, and petrochemical industries.
Like ceramics, plastics are non-conductive, so direct electroplating isn't possible. Instead, we use electroless plating to deposit a thin metal layer on the FRP surface. This conductive layer enables further electroplating if needed, allowing for thicker, more durable metal coatings.
Metal plating on FRPs provides benefits such as improved wear resistance, electrical conductivity, and protection against environmental damage. For example, plating carbon fiber exteriors on aircraft enhances conductivity, protecting against lightning strikes.
Different FRPs include:
Glass Fiber Reinforced Plastic (GFRP): Good electrical resistance, moisture resistance, sometimes stronger than steel but heavier.
Carbon Fiber Reinforced Plastic (CFRP): Stronger and lighter than GFRP, widely used in high-performance vehicles and aircraft.
Aramid Fiber Reinforced Plastic (AFRP): Known for high energy absorption, used in bulletproof gear.
Electroplating requires a conductive surface, so it works directly on metal matrix composites. For non-conductive composites like ceramics or plastics, electroless plating is necessary first. Electroless plating deposits metal chemically without electricity, forming a thin, even metal layer that allows electroplating afterward.
Electroless plating typically uses nickel alloys with added phosphorus or boron. Varying these elements changes hardness, corrosion resistance, and solderability. For example:
Higher phosphorus content improves corrosion resistance.
Higher boron content increases hardness and allows heat treatment.
Choosing between electroplating and electroless plating depends on the composite type, desired coating properties, and application requirements. Sometimes, a combination of both methods achieves the best results.

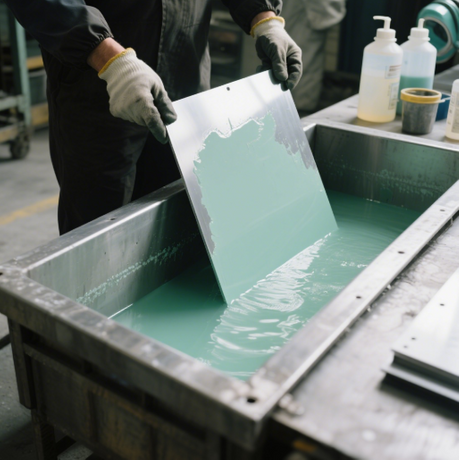

Electroplating starts by thoroughly cleaning the metal surface to remove dirt, grease, and oxides. This ensures the plating sticks well. Next, the cleaned object becomes the cathode (negative electrode) in an electrolytic cell. The plating metal acts as the anode (positive electrode). Both are immersed in an electrolyte solution containing metal ions of the plating metal.
When electric current flows, metal ions from the electrolyte move toward the cathode and deposit onto its surface as a thin, even layer. Simultaneously, metal atoms from the anode dissolve into the electrolyte, replenishing the metal ions. This balance helps maintain the plating solution's concentration. The thickness and quality of the plating depend on factors like current density, temperature, and plating time.
The electrolyte solution is crucial. It contains dissolved metal salts that provide the ions needed for plating. For example, copper plating uses copper sulfate solutions, while chromium plating uses chromic acid baths. The solution's composition affects the plating rate, deposit quality, and brightness.
Additives may be included to improve smoothness, reduce roughness, or control the deposit’s hardness. Proper pH and temperature control ensure consistent plating. The solution must be regularly monitored and replenished to keep the metal ion concentration stable during the process.
Electroplating requires an electric current and a conductive base metal. It deposits metal ions onto the surface by electrolysis. In contrast, electroless plating uses a chemical reduction reaction without electricity. It deposits metal evenly on conductive or non-conductive surfaces.
Electroless plating is often used to plate plastics, ceramics, or composites that lack conductivity. It provides a uniform coating thickness regardless of part shape. However, electroplating offers faster deposition rates and a wider variety of metals for coating.
Several factors influence the final plating quality:
Current density: Too high causes rough, burnt coatings; too low produces thin, uneven layers.
Temperature: Affects ion mobility and plating rate; each plating bath has an optimal range.
Agitation: Stirring the electrolyte improves ion distribution for uniform plating.
Bath composition: Impurities or incorrect pH can cause defects like pitting or dullness.
Time: Longer plating increases thickness but may increase internal stress or brittleness.
Proper control of these parameters ensures smooth, adherent, and durable coatings.
Electroplating involves hazardous chemicals like cyanides, acids, and heavy metals. Wastewater and air emissions must be treated to prevent pollution. Workers need protective equipment to avoid exposure to toxic fumes and skin contact.
Modern plating facilities use closed systems, filtration, and recycling methods to minimize environmental impact. Regulations often require monitoring and controlling effluents. Safer alternatives like non-cyanide baths and less toxic metals are increasingly adopted to improve safety and sustainability.
Proper disposal of plating sludge and spent solutions is critical to protect ecosystems. Training and strict protocols help maintain a safe working environment in electroplating operations.
Electroplating is a versatile and essential process used across many industries to enhance the properties of metals, from improving durability and corrosion resistance to adding aesthetic appeal. Through various classification methods—such as chrome, copper, and tin plating—electroplating serves both functional and decorative purposes in fields like electronics, automotive, aerospace, and jewelry. While electroplating offers significant advantages, including excellent conductivity and wear resistance, it also comes with challenges like environmental concerns and the need for precise process control. Understanding the different plating techniques, their properties, and applications is crucial for optimizing performance and ensuring sustainability in industrial operations.
A: Chrome plating is used for protective and decorative coatings on automotive parts, tools, fixtures, and machinery components due to its durability and shiny appearance.
A: Copper plating enhances electrical conductivity, making it ideal for connectors and circuit boards, while also improving thermal dissipation.
A: Cadmium plating is declining due to its toxicity and environmental impact, with industries opting for safer alternatives like zinc plating.
A: Tin plating faces challenges like tin plague and whisker growth, which can affect its durability and electrical performance.
A: Zinc plating provides anodic protection, corroding preferentially to shield the steel beneath from rusting.
